Main Features：
1.The D type EPS Block Forming Machine has a specially designed Double Gas Chambers (National Patent), based on the previous Single Gas Chamber EPS Block Forming Machine, which saves up to 30% energy, fast EPS Block forming speed, with good bonding property, uniform density. This solves the problem of uneven density of the upper and lower feeding inside the mould cavity of the Single Gas Chamber EPS Block Forming Machine, when the EPS Block edges are not fully filled with the EPS material, and the drawbacks of moisture inside the EPS Block.

2. The machine is assembled by using high quality copper welding method, and goes through aging treatment.which gives the machine high strength, without deformation. This machine can produce EPS Block products with density of 6~40kg/m3.

3. The machine can optionally be equipped with the Touch Screen, Automatic Conveyer and Automatic Electronic Weighing Scale, Printer.

4. This machine can be used together with lhe Color Steel Sandwich Panel Production Line to produce the width of 850mm, 950mm and 1150mm EPS Blocks, and can also produce the width of 1000mm EPS Block for building construction purposes.

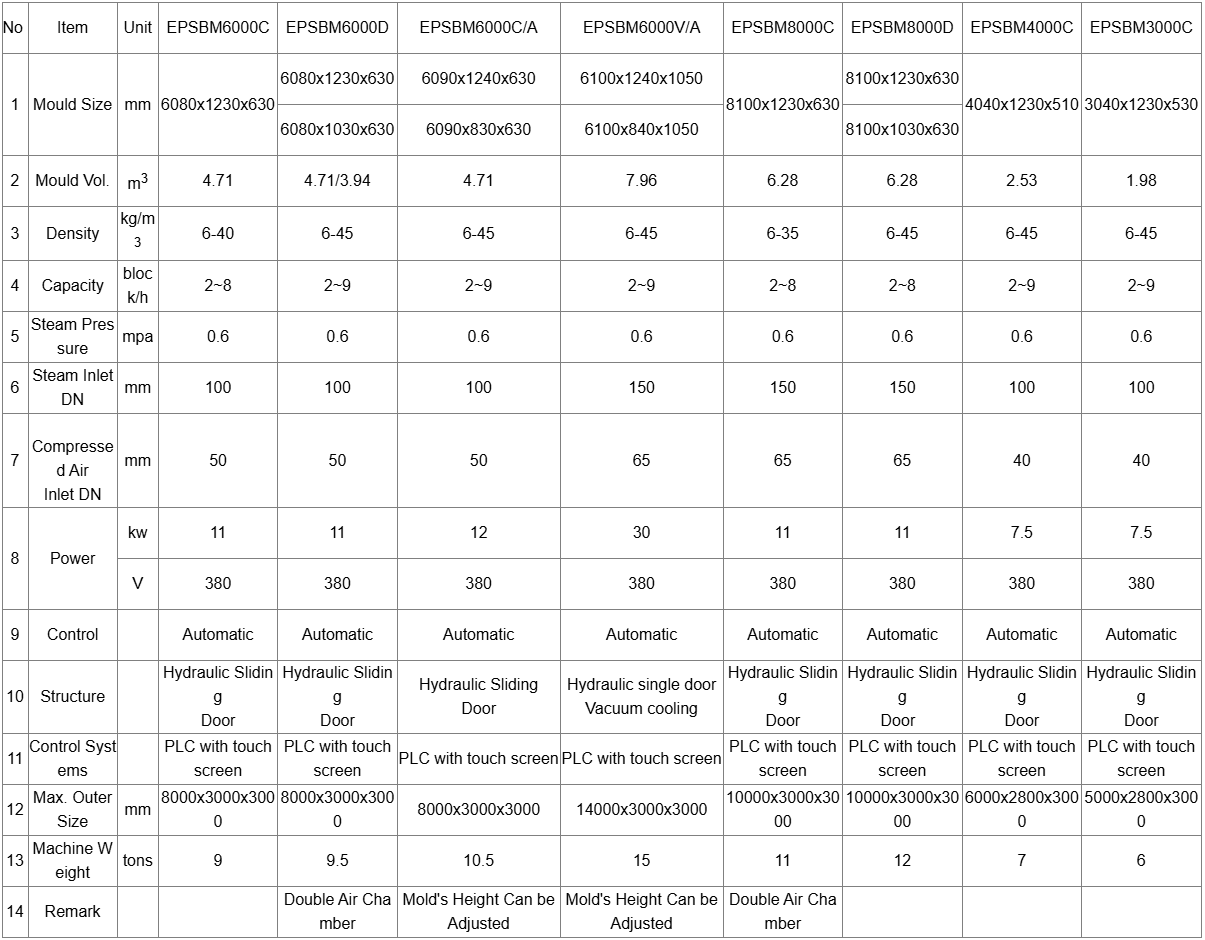

Technical parameters：

Company and service advantages:

1.The company workshop 40,000 square meters, has introduced the first-class multi-station machining center, CNC lathes, CNC milling machines and other high-precision processing equipment. Such as the value of 4.5 million yuan 3mx8m gantry machining center, and the value of 300 million yuan 2.5 mx12m gantry milling machine.

2.The company has a professional The Adjuster team, 24 hours to provide uninterrupted after-sales service.

(1) Installation and debugging
Equipment arrived at the customer workshop, according to the flat layout of our equipment. We will arrange experienced technicians to install, debug and test-produce the equipment, and make the equipment reach the rated production capacity of the production line.
(2) Training
Our company provides technical training for our customers. The training includes the structure and maintenance of the equipment, the control and operation of the equipment, experienced technicians will guide and establish the training program. After training, the buyer's technical personnel can master the operation and maintenance of the equipment, can adjust the process and deal with different failures.

3.After-sales quality problems within 2 hours to answer, if the telephone video guidance can not be solved, domestic 24 hours to send engineers to the site to solve the problem.

4. Factory direct sales price concessions, 40,000 square meters factory, 20 years of Export Enterprises, CE certification, patents more than 50 items.
